SafeView™ Classic
Cat. No. | G108 |
Name | SafeView™ Classic |
Unit | 1.0 ml |
Category | Gel Documentation |
Description |
abm’s SafeView™ Classic is a safe, improved formulation of nucleic acid stain for agarose gel electrophoresis. SafeView™ Classic directly replaces toxic Ethidium Bromide and eliminates its associated contamination risks with glassware, gel apparatus and environment. Features: |
LED Viewer Compatibility | Yes |
Application |
Safe Detection of dsDNA, ssDNA and RNA in agarose gels. |
Concentration | 10,000X |
Format General | Pre-cast or Post-stain |
Storage Condition |
Store at 18-25°C |
Note |
Dispose of SafeView DNA Stains as you would any other non-carcinogenic fluorescent dye (eg. Acridine orange; Propidium iodide). |
Material Citation | If use of this material results in a scientific publication, please cite the material in the following manner: Applied Biological Materials Inc, Cat. No. G108 |

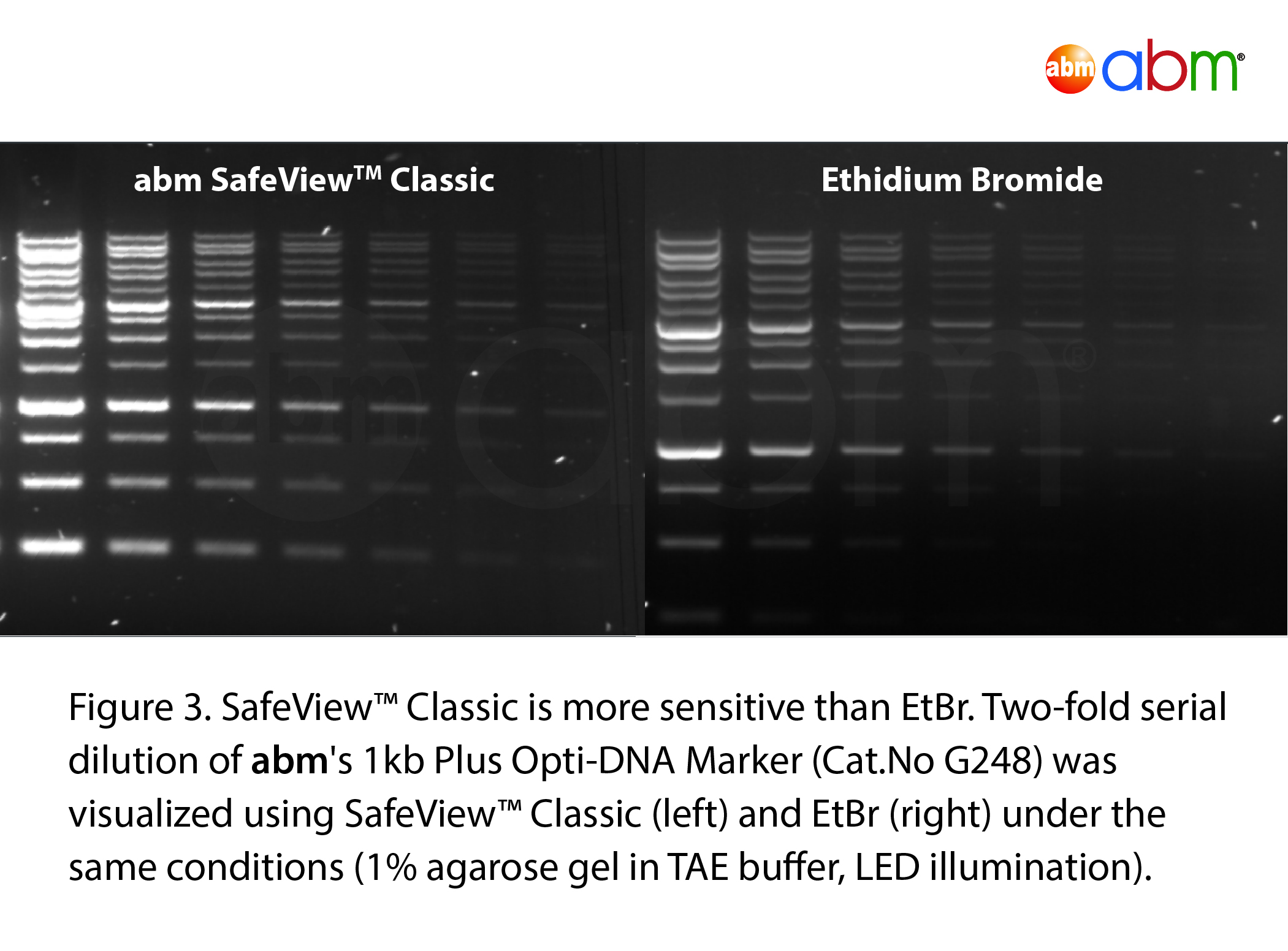

Can SafeView products be used in replacement of ethidium bromide? | |
All SafeView™ products (Safe-Green™, Safe-Red™, SafeView™ Classic, Safe-Red™ Gel) can be used as a complete replacement for your ethidium bromide workflow. |
How do SafeView products work and why are they not carcinogenic? | |
SafeView™ products contain fluorescent compounds that have a strong affinity to nucleic acids. Once bound to a nucleic acid, the compound fluoresces under specific wavelength of light which can then be visualized using a standard UV/Blue light imager. There may be some unknown effects of SafeView™ products that have not been documented in literature but these would also apply to equivalent popular products such as SYBRSafe. However, SafeView™ products are not as carcinogenic as ethidium bromide. |

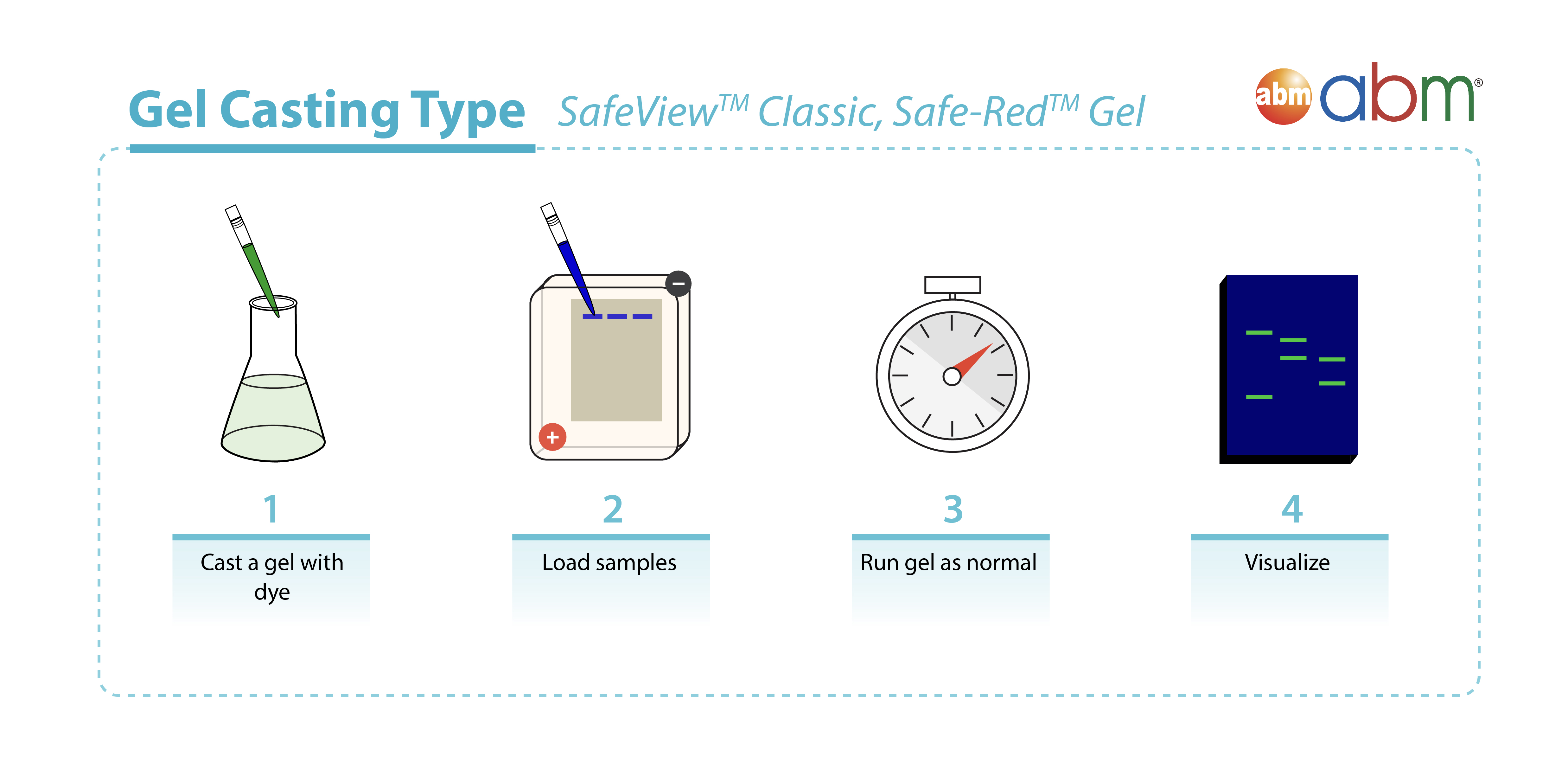

How do I use SafeView products? | |
Safe-Red™ and Safe-Green™ are supplied in a 6X loading dye format: mix samples and DNA marker with Safe-Red™ or Safe-Green™ at a 1:5 (dye : sample) dilution ratio, and load onto an unstained gel. |
Can SafeView products differentiate between double stranded and single stranded nucleic acids? | |
No, our SafeView products will bind to both double-stranded and single-stranded nucleic acids, albeit with lesser efficiency for single-stranded nucleic acid species.
|
At what temperature do I store SafeView products? | |
SafeView Classic™, Safe-Red™ and Safe-Red™ Gel should be stored at 18-25°C. Safe-Green™ should be stored at 4°C. |
How long can a SafeView Classic stained gel be stored for? | |
We recommend imaging a SafeView™ Classic stained gel immediately after it has finished running in order to maintain optimal brightness, sensitivity and band sharpness. Prolonged storage of a used gel may result in decreased sensitivity and diffusion of bands. A pre-cast unused SafeView™ Classic gel can be stored and used up to 1 week after being prepared provided they are stored in ideal conditions e.g. sealed in plastic bag away from light. If stored for longer than 1 week, there will be decreased resolution.
|
How sensitive are SafeView products? | |
Safe-Green™: 0.2-0.6 ng DNA per band |
Can SafeView products be used to post-stain gels? | |
Yes, SafeView™ Classic and Safe-Red™ Gel can both be used for either pre-cast or post-stain gels.
|
How do I dispose of used gloves, electrophoresis buffer and agarose gels stained with SafeView? | |
Dispose of SafeView™ Classic as you would any other non-carcinogenic fluorescent dye (e.g. Acridine orange, Propidium iodide). All gels and contaminated “non-sharp” lab debris (e.g., gloves, pads, towels, tubes, etc.) that are processed using this stain can be discarded in regular landfill trash. Used electrophoresis buffer and staining solutions that contain the stain can either be collected and disposed of through the HWMU or collected and run through an approved filter device. The buffer solutions that have been run through the approved filter should be checked under the appropriate light source for complete removal of the dyes, and if it passes (does not fluoresce), the liquid can be disposed of down the drain with a copious amount of water as long as no other materials are present that would cause the material to be a Hazardous Waste. The filters that have been used up and are no longer effective must be disposed of through the HWMU.
|
Do I need to add any loading dye to my samples prior to running them on a SafeView agarose gel? | |
If using Safe-Green™ or Safe-Red™, you will not need to add any additional loading dyes to your samples. If using SafeView™ Classic or Safe-Red™ Gel, you will need to add an appropriate DNA loading dye to your samples in order for samples to properly settle and stay in the wells during electrophoresis. |
I cannot visualize 100bp and 200bp DNA bands on a 1% SafeView agarose gel. What should I do? | |
It is often difficult to detect smaller 100bp and 200bp bands on a 1% gel especially if samples are of low concentration. We recommend visualizing smaller fragments on a higher concentration gel - ideally 2% agarose.
|
Can I use SafeView products to visualize nucleic acids on a polyacrylamide gel? | |
SafeView™ products are designed for use with agarose gels, and are not optimized for polyacrylamide gels. However, SafeView™ Classic and Safe-Red™ Gel can both visualize nucleic acids on polyacrylamide gels (Acrylamide, TBE, APS, TEMED) by post staining method.
|
Can SafeView products be stored at -20°C? | |
No, please store Safe-Green™ at 4°C and SafeView™ Classic, Safe-Red™ and Safe-Red™ Gel at 18-25°C. |
What is the concentration of SafeView products? | |
SafeView™ Classic and Safe-Red™ Gel are supplied at a 10,000X concentration. Safe-Green™ and Safe-Red™ are supplied at a 6X concentration.
|
Can SafeView Classic stain penetrate cell membranes? | |
Yes, SafeView™ Classic can penetrate living cell membranes.
|
Can I perform gel extraction and subsequent cloning using SafeView products? | |
We recommend using SafeView™ Classic or Safe-Red™ Gel which can both be used for gel extraction of DNA fragments destined for cloning. We have observed no decrease in cloning efficiency in comparison to ethidium bromide.
|
What type of device or imaging system should be used to visualize SafeView agarose gels? | |
We recommend using abm’s SafeViewER™ Imager (Cat.No E1001) which is compatible with all SafeView™ products. Additionally, any imaging system with UV, Blue Light and/or LED should be sufficient.
|
- Ish-Shalom, S et al. "Analysis of fungal gene expression by Real Time quantitative PCR" Methods Mol Biol. 638:103-104 (2010). DOI: 10.1007/978-1-60761-611-5_7. Application: PCR Products Viewing.
- Pyo, JS et al. "Activation of nuclear factor-κB contributes to growth and aggressiveness of papillary thyroid carcinoma" Pathol Res Pract. 209 (4):228-232 (2013). DOI: 10.1016/j.prp.2013.02.004. Application: PCR Products viewing.
- Diza-Balzac, CA et al. "Calbindin-D32k Is Localized to a Subpopulation of Neurons in the Nervous System of the Sea Cucumber Holothuria glaberrima (Echinodermata)" PLoS 7 (3):e32689 (2012). DOI: 10.1371/journal.pone.0032689. Application: PCR Products Viewing.
- Kim, NH et al. "Reactive oxygen species regulate context-dependent inhibition of NFAT5 target genes" Exp Mol Med 45:e32 (2013). DOI: 10.1038/emm.2013.61. Application: PCR Products Viewing.
- Wang, AY et al. "Key functional regions in the histone variant H2A. Z C-terminal docking domain" Mol. Cell. Biol. 31(18):3871-3884 (2011). DOI: 10.1128/MCB.05182-11.
- Ibeagha-Awemu, EM et al. "Proteomics, genomics, and pathway analyses of Escherichia coli and Staphylococcus aureus infected milk whey reveal molecular pathways and networks involved in mastitis" J. Proteome Res. 9 (9):4604-4619 (2010). DOI: 10.1021/pr100336e. PubMed: 20704270. Application: PCR Products Viewing.
- Machida, RJ et al. "PCR primers for metazoan nuclear 18S and 28S ribosomal DNA sequences" PLoS ONE 7 (9):e46180 (2012). DOI: 10.1371/journal.pone.0046180. PubMed: 23049971. Application: PCR Products Viewing.
- Goo, BG et al. "Bacillus thuringiensis: a specific gamma-cyclodextrin producer strain" Carbohydr. Res. 07-Dec:386 (2014). DOI: 10.1016/j.carres.2013.12.005. PubMed: 24456970. Application: PCR Products Viewing.
- Lam, SW et al. "Rapid, specific and quantitative polymerase chain reaction (PCR) detection of pathogenic protozoa Entamoeba histolytica for drinking water supply" Water Science & Technology: Water Supply 11 (4):418-425 (2011). DOI: 10.2166/ws.2011.057. PubMed: 67657423. Application: PCR Products Viewing.
- Lee, SB et al. "Analysis of zebrafish (Danio rerio) behavior in response to bacterial infection using a self-organizing map" BMC Vet Res 7: 269 (2015). DOI: 10.1186/s12917-015-0579-2. PubMed: 26497220. Application: PCR Products Viewing.
- Keskin, A et al. "Distributions of CYP19, ERα and PGR Allele Frequencies between Fertile and Subfertile Holstein-Friesian Heifers" Kafkas Univ Vet Fak Derg 6:893-898 (2015). DOI: 10.9775/kvfd.2015.13827. Application: PCR Products Viewing.
- Mo, J et al. "Early growth response 1 (Egr-1) directly regulates GABAA receptor α2, α4, and θ subunits in the hippocampus" J Neurochem 133(4):489-500 (2015). DOI: 10.1111/jnc.13077. PubMed: 25708312. Application: PCR Products Viewing.
- Chen, T et al. "Stimulation of Proliferation and Migration of Mouse Macrophages by Type B CpG-ODNs Is F-Spondin and IL-1Ra Dependent" PLoS One 10(6):e0128926 (2015). DOI: 10.1371/journal.pone.0128926. PubMed: 26042735. Application: PCR Products Viewing.
- Hsieh, C et al. "Gallic acid exhibits risks of inducing muscular hemorrhagic liposis and cerebral hemorrhage--its action mechanism and preventive strategy" Phytother Res 29(2):267-80 (2015). DOI: 10.1002/ptr.5249. PubMed: 25403162. Application: PCR Products Viewing.
- Do, SI et al. "Decreased expression of p27 is associated with malignant transformation and extrathyroidal extension in papillary thyroid carcinoma" Tumour Biology 37.3:3359 (2016). DOI: 10.1007/s13277-015-4163-y. Application: Visualization.
- Nanduri, V et al. "Histochemical and Molecular Characterization of Spongiosal Cells in Native Tissue, Two-and Three-Dimensional Cultures of Rat Aortic Valve" J. Histology 2016:1 (2016). DOI: dx.doi.org/10.1155/2016/7680701.
- Anjali, N et al. "Intraspecific variations in cardamom (Elettaria cardamomum Maton): assessment of genomic diversity by flow cytometry, cytological studies and ISSR analysis" Springerplus 5(1):1560 (2016). DOI: 10.1186/s40064-016-3226-x.
- Dudek, M et al. "The chondrocyte clock gene Bmal1 controls cartilage homeostasis and integrity" J. Clin. Invest. 126(1):365-376 (2016). DOI: doi: 10.1172/JCI82755.
- Vivero, RJ et al. "Structural differences in gut bacteria communities in developmental stages of natural populations of Lutzomyia evansi from Colombia's Caribbean coast" Parasit. Vectors 126:365 (2016). DOI: doi: 10.1172/JCI82755.
- Zu, Y et al. "Facile and phase-defined determination of HLA alleles with morpholino-functionalized nanoparticle probes" Nanomedicine : (2016). DOI: dx.doi.org/10.1016/j.nano.2016.09.009.
- Mizan, MF et al. "Variability in biofilm formation correlates with hydrophobicity and quorum sensing among Vibrio parahaemolyticus isolates from food contact surfaces and the distribution of the genes involved in biofilm formation" Biofouling 32 (4):497-509 (2016). DOI: dx.doi.org/10.1080/08927014.2016.1149571.
- Zhao, X et al. "Optical fiber sensor based on surface plasmon resonance for rapid detection of avian influenza virus subtype H6: Initial studies." J Virol Methods 233:15-22 (2016). DOI: dx.doi.org/10.1016/j.jviromet.2016.03.007.
- Doh, EJ et al. "Identification and monitoring of Korean medicines derived from Cinnamomum spp. by using ITS and DNA marker" Genes Genomics 39(1):101-109 (2016). DOI: 10.1007/s13258-016-0476-5.
- Do, SI et al. "Decreased expression of p27 is associated with malignant transformation and extrathyroidal extension in papillary thyroid carcinoma" Tumour Biol. 37(3):3359-3364 (2016). DOI: 10.1007/s13277-015-4163-y.
- Ashrafudoulla, M., Mizan, M. F. R., Park, H., Byun, K. H., Lee, N., Park, S. H., & Ha, S. D. "Genetic Relationship, Virulence Factors, Drug Resistance Profile and Biofilm Formation Ability of Vibrio parahaemolyticus Isolated From Mussel" Frontiers in Microbiology 10: (2019). DOI: 10.3389/fmicb.2019.00513.
- Busuttil, F.. "Combining tissue engineering and gene delivery to enhance peripheral nerve regeneration (Doctoral dissertation, UCL)" University College London London:England (2019).
- Coban, A., Pennone, V., Sudagidan, M., Molva, C., Jordan, K., & Aydin, A. "Prevalence, virulence characterization, and genetic relatedness of Listeria monocytogenes isolated from chicken retail points and poultry slaughterhouses in Turkey" Brazilian Journal of Microbiology 50(4):1063-1073 (2019).
- Ho, Y. S., Wu, J. Y., & Chang, C. Y. "A New Natural Antioxidant Biomaterial from Cinnamomum osmophloeum Kanehira Leaves Represses Melanogenesis and Protects against DNA Damage" Antioxidants 8(10):474 (2019).
- Jeong, H.-P., Cha, J., Park, S. Y., Yoon, I. S., Lee, J. S., Heu, M. S., & Kim, J.-S. "원료 등급에 따른 명란의 위생학적 특성" 한국수산과학회지 52(4):334–343 (2019). DOI: 10.5657/KFAS.2019.0334.
- Işık, R., & Bilgen, G. "Associations between genetic variants of the POU1F1 gene and production traits in Saanen goats" Archives Animal Breeding 62(1):249–255 (2019). DOI: 10.5194/aab-62-249-2019.
- Jo, Y. D., Lee, H. Y., Ro, N. Y., Kim, S. H., Kim, J. B., Kang, B. C., & Kang, S. Y. "Mitotypes based on structural variation of mitochondrial genomes imply relationships with morphological phenotypes and cytoplasmic male sterility in peppers" Frontiers in Plant Science 10:1343 (2019).
- Keskin, D., Başbülbül, G., & Bozdoğan, B. "The effects of hypochlorous acid on microflora of chicken meat" European Journal of Biotechnology and Bioscience 7(3):41–46. Retrieved from (2019).
- Lee, Y. H., Kim, D. Y., Jeong, S. H., & Hwang, Y. J. "Effect of exposure to Asian sand dust-Particulate matter on liver Tenascin-C expression in human cancer cell and mouse hepatic tissue" The Journal of toxicological sciences 44(9):633-641 (2019).
- Lee, Y. H., Kim, D.Y., Jeong, S.H., Hwang, Y.J. "Effect of exposure to Asian sand dust-Particulate matter on liver Tenascin-C expression in human cancer cell and mouse hepatic tissue" J. Toxicol. Sci. 44(9) 633-641: (2019).
- Pereira, B. A., Zangeronimo, M. G., Castillo-Martín, M., Gadani, B., Chaves, B. R., Rodríguez-Gil, J. E., … Yeste, M. "Supplementing Maturation Medium With Insulin Growth Factor I and Vitrification-Warming Solutions With Reduced Glutathione Enhances Survival Rates and Development Ability of in vitro Matured Vitrified-Warmed Pig Oocytes" Frontiers in Physiology 9: (2019). DOI: 10.3389/fphys.2018.01894.
- Xuan, T., Anh, T., Tran, H.-D., Khanh, T., & Dat, T. "Mutation Breeding of a N-methyl-N-nitrosourea (MNU)-Induced Rice (Oryza sativa L" ssp. Indica) Population for the Yield Attributing Traits. Sustainability 11(4):1062 (2019). DOI: 10.3390/su11041062.
- 정효빈., 차장우., 박선영., 윤인성., 이정석., 허민수., & 김진수. "원료 등급에 따른 명란의 위생학적 특성" 한국수산과학회지 52(4):334-343 (2019).
- Kamani, J., Schaer, J., Umar, A. G., Pilarshimwi, J. Y., Bukar, L., González-Miguel, J., & Harrus, S. (2022). Molecular detection and genetic characterization of Anaplasma marginale and Anaplasma platys in cattle in Nigeria. Ticks and Tick-Borne Diseases, 13(4), 101955. https://doi.org/10.1016/j.ttbdis.2022.101955
- Gurpinar, S. S., Kart, D., & Eryilmaz, M. (2022). The effects of antidepressants fluoxetine, sertraline, and amitriptyline on the development of antibiotic resistance in Acinetobacter baumannii. Archives of Microbiology, 204(4). https://doi.org/10.1007/s00203-022-02853-6
- Baydar, E., Aydogdu, U., Utuk, A. E., Kaya, F., Timurkan, O., Erol, U., & Babur, C. (2022). Infectious diseases in rising riding-horse and donkey milk industry: First detection of Neospora sp. antibodies in donkeys in Turkey. https://doi.org/10.21203/rs.3.rs-1454386/v1
- Di Iorio, E., De Luca, D., Menale, B., Piazza, C., Bacchetta, G., & De Castro, O. (2024). Genome-Wide Characterization of Nuclear Microsatellite Markers for Centranthus trinervis (= Valeriana trinervis) and Cross-Amplification in Five Congeneric Taxa. Plant Molecular Biology Reporter, 42(4), 743–751. https://doi.org/10.1007/s11105-024-01454-5
- Gabrielli, S., Brustenga, L., Morganti, G., Ciuca, L., Barlozzari, G., Rigamonti, G., Orlandi, M., Sforna, M., & Veronesi, F. (2024). Genetic variability of Dirofilaria repens isolates from humans and dogs in Italy. Veterinary Parasitology, 326, 110096. https://doi.org/10.1016/j.vetpar.2023.110096
- Kaplan, M. F., Kaplan, E., Raza, A., Demirler, M., Baran, A., Cengiz, S., & Adiguzel, M. C. (2024). Evaluation of raw milk samples and vendor‐derived Staphylococcus aureus and Coxiella burnetii prevalence in dairy delicatessens in eastern Turkey. Food Science & Nutrition, 12(8), 5942–5950. Portico. https://doi.org/10.1002/fsn3.4236
- Wang, W., Ma, C., Chen, W., Jin, Z., Zhao, M., Zhang, F., Liu, Z., & Ma, L. (2020). Population genetic diversity of mud crab (Scylla paramamosain) from southeast coastal regions of China based on mitochondrial COI gene sequence. Gene, 751, 144763. https://doi.org/10.1016/j.gene.2020.144763
- Bayrakal, G. M., & Aydin, A. (2024). Investigation of Various Toxigenic Genes and Antibiotic and Disinfectant Resistance Profiles of Staphylococcus aureus Originating from Raw Milk. Foods, 13(21), 3448. https://doi.org/10.3390/foods13213448
- Kamani, J., Nachum‐Biala, Y., Bukar, L., Shand, M., & Harrus, S. (2023). Molecular detection of Bartonella quintana, Acinetobacter baumannii and Acinetobacter haemolyticus in Pediculus humanus lice in Nigeria, West Africa. Zoonoses and Public Health, 71(1), 48–59. Portico. https://doi.org/10.1111/zph.13082
- Thaikoed, S., Mitsuwan, W., Chaisiri, K., Tanthanathipchai, N., de Lourdes Pereira, M., Paul, A. K., Nissapatorn, V., & Saengsawang, P. (2024). The infection of Cysticercus fasciolaris in natural rats (Rattus species) residing in human residence areas, Nakhon Si Thammarat, Thailand. Comparative Immunology, Microbiology and Infectious Diseases, 107, 102152. https://doi.org/10.1016/j.cimid.2024.102152
- Tasci, F., Sudagidan, M., Yavuz, O., Soyucok, A., & Aydin, A. (2024). Virulence properties of Listeria monocytogenes isolated from meat and meat contact surfaces in a slaughterhouse. Polish Journal of Veterinary Sciences, 13–23. https://doi.org/10.24425/pjvs.2024.149329
- Passerini, S., Babini, G., Merenda, E., Carletti, R., Scribano, D., Rosa, L., Conte, A. L., Moens, U., Ottolenghi, L., Romeo, U., Conte, M. P., Di Gioia, C. R. T., & Pietropaolo, V. (2024). Merkel Cell Polyomavirus in the Context of Oral Squamous Cell Carcinoma and Oral Potentially Malignant Disorders. Biomedicines, 12(4), 709. https://doi.org/10.3390/biomedicines12040709
- Yazlık, M. O., Müştak, İ. B., Özkan, H., Vural, S. A., Kaya, U., Özöner, Ö., Mutluer, İ., Altınbaş, Y. F., Soylu, M. S., & Vural, M. R. (2024). The presence of virulence factor genes downregulates uterine AQP3 and alters glutathione peroxidase activity and uterine histopathology in canine pyometra. Reproduction in Domestic Animals, 59(5). Portico. https://doi.org/10.1111/rda.14615
- Lee, J. R., Kim, Y.-M., Kim, E.-J., Jang, M.-K., & Park, S.-C. (2024). Advancing Breast Cancer Therapeutics: Targeted Gene Delivery Systems Unveiling the Potential of Estrogen Receptor-Targeting Ligands. Biomaterials Research, 28. https://doi.org/10.34133/bmr.0087
- Karakaya, İ., Arslanhan, B. A., & Önder, Z. (2024). Detection of mutations in the voltage-gated sodium channel gene of Varroa destructor (Acari: Varroidae) populations. Veterinary Parasitology: Regional Studies and Reports, 56, 101121. https://doi.org/10.1016/j.vprsr.2024.101121
- Bo-Hong, W., Chang, P.-C., & Yen-Peng, H. (2024). Analysis of genetically modified soya and soya products using a fluorescence probe based on PCR-initiated isothermal amplification of G-quadruplex DNA. Journal of Food Composition and Analysis, 125, 105828. https://doi.org/10.1016/j.jfca.2023.105828
- Katsukunya, J. N., Jones, E., Soko, N. D., Blom, D., Sinxadi, P., Rayner, B., & Dandara, C. (2024). Genetic Variation in ABCB1, ADRB1, CYP3A4, CYP3A5, NEDD4L and NR3C2 Confers Differential Susceptibility to Resistant Hypertension among South Africans. Journal of Personalized Medicine, 14(7), 664. https://doi.org/10.3390/jpm14070664
- Shokoohi, E., & Masoko, P. (2024). Morphological and molecular analysis of Propanagrolaimus siweyae sp. n. (Nematoda: Panagrolaimidae) from Molepo dam, Limpopo Province, South Africa, and its relationship with water parameters. Biologia, 79(12), 3573–3587. https://doi.org/10.1007/s11756-024-01806-2
- Naman, K. J., Ubachukwu, P., Agwu, J. E., & Kamani, J. (2024). Molecular identification of blowfly species (diptera: calliphoridae) and beetles (coleopterans) of forensic importance associated with pig (sus scrofa) carrion in Nigeria. International Journal of Tropical Insect Science, 44(4), 1767–1775. https://doi.org/10.1007/s42690-024-01269-7
- Korkulu, E., Şenlik, E. İ., Adıgüzel, E., Artut, F. G., Çetinaslan, H. D., Erdem-Şahinkesen, E., & Oğuzoğlu, T. Ç. (2024). Status Quo of Feline Leukaemia Virus Infection in Turkish Cats and Their Antigenic Prevalence. Animals, 14(3), 385. https://doi.org/10.3390/ani14030385
- Huang, W.-L. (2024). Knockdown of EPS8 expression attenuates the proliferation of enzalutamide-resistant prostate cancer cells. American Journal of Cancer Research, 14(10), 4717–4730. https://doi.org/10.62347/yqwj7498
- Nguyen, T. M. N., Tran, V. H., & Ha, T. M. T. (2024). Helicobacter pylori cagA, vacA, and iceA genotypes and clinical outcomes: a cross-sectional study in central Vietnam. Brazilian Journal of Microbiology, 55(2), 1393–1404. https://doi.org/10.1007/s42770-024-01328-8
- Kellner, K., Lao, N. T., & Barron, N. (2024). CRISPR Deletion of miR-27 Impacts Recombinant Protein Production in CHO Cells. Recombinant Protein Expression in Mammalian Cells, 285–300. https://doi.org/10.1007/978-1-0716-3878-1_18
